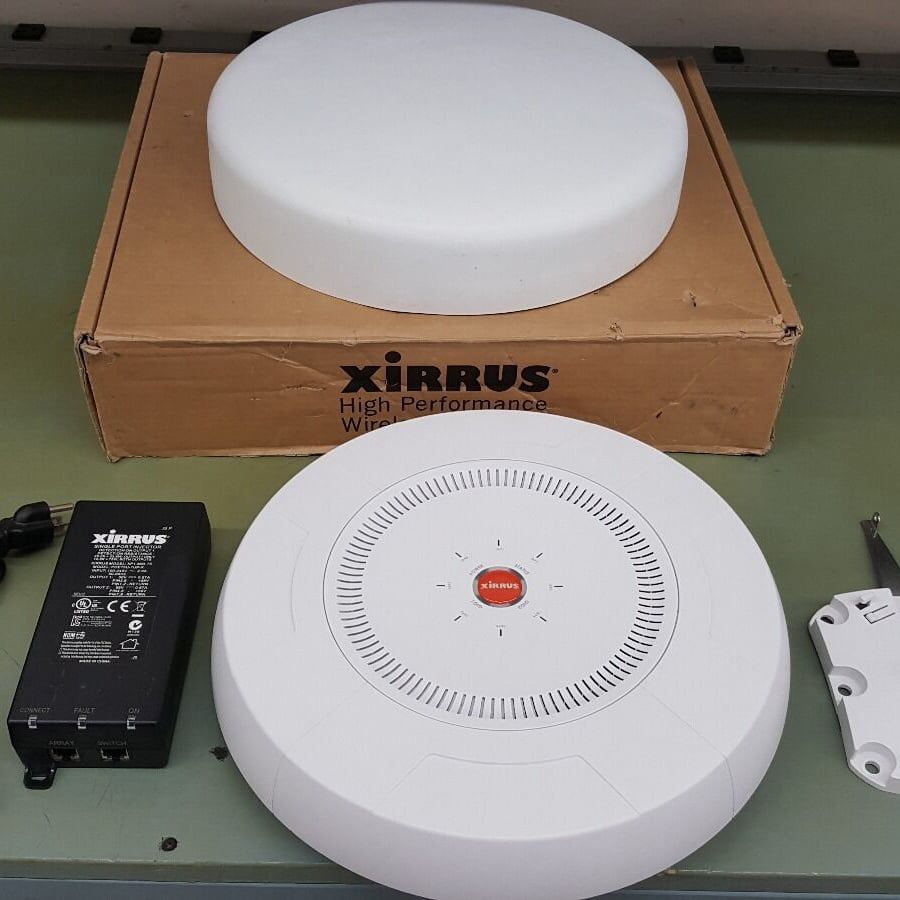

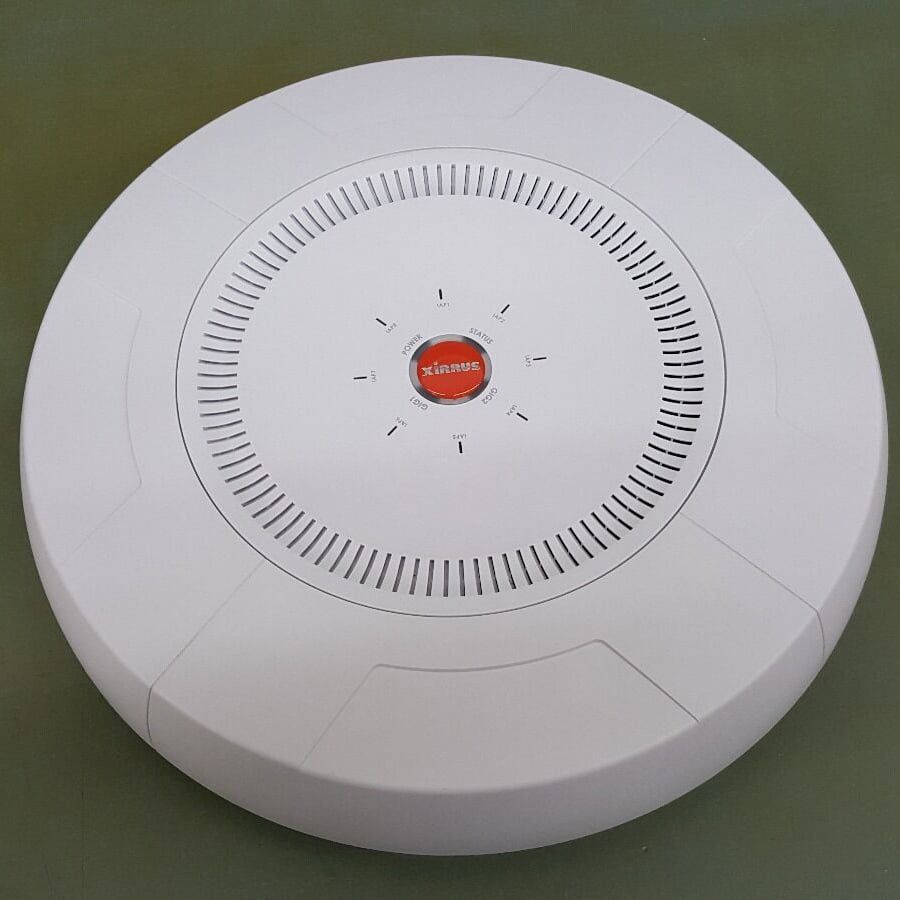

Xirrus XR-4820 Wireless Array

 is the first modular Wi-Fi product of its kind featuring upgradability, high scalability, high performance and integrated security to economically serve today’s requirements without sacrificing for tomorrow’s demand.

The XR-4820 Arrays deliver 4x the coverage, up to 8x the bandwidth and user density compared to legacy thin AP solutions. This equates to 75% less equipment, cable runs, and switch ports - resulting in a significant reduction in installation and ongoing management efforts compared to competitive solutions. The Xirrus XR-4820 combines unmatched flexibility in wireless standards with the ability to scale a network to meet increasing capacity demands without adding additional devices.

At A Glance

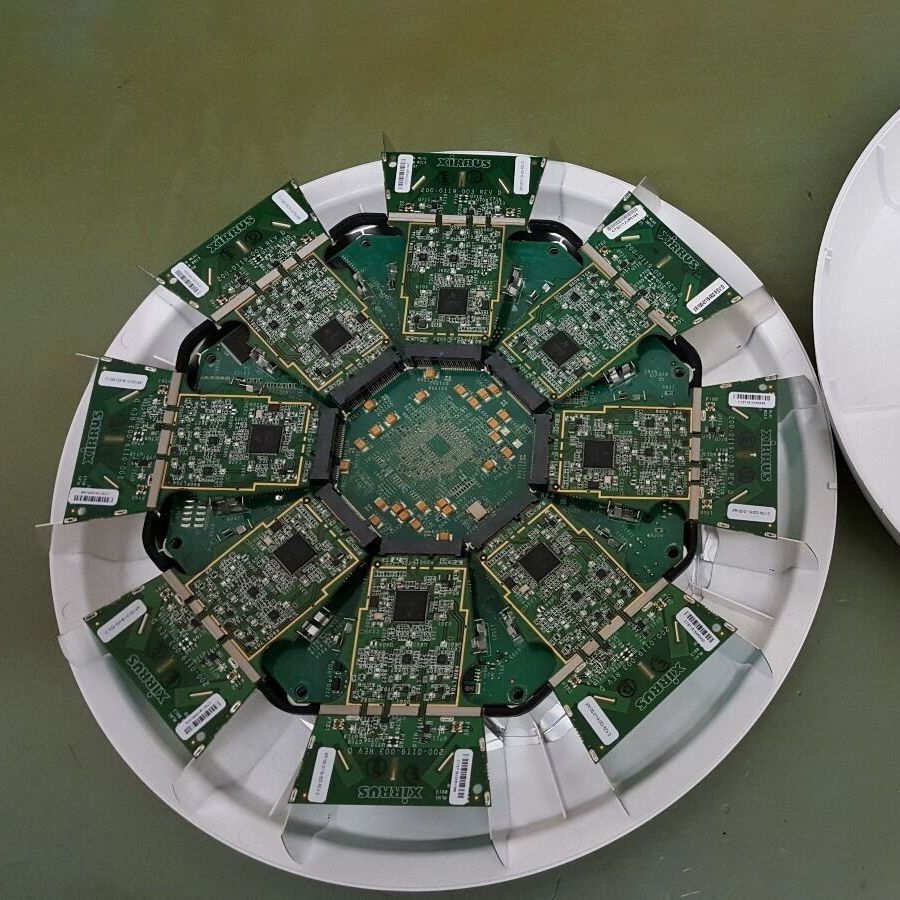

• Configurable with 8 multi-state radios (2.4GHz and 5GHz)

• 300Mbps Multi-State (2.4GHz or 5GHz)

• WiFi bandwidth upto  2.4Gbp

• Field upgradable to more radios or new technologies



Benefits:

Upgradable

Adapt to changes in business requirements with the ability to upgrade across Xirrus XR-4820 Array. Deliver a solution with a true 5 year life cycle that can incorporate new technologies as they come to market without starting over.

Scalable

Maintain a high level of performance for mission-critical applications and support the ability to handle unpredictable user growth throughout your Wi-Fi network. Scale the number of users by adding radios and scale capacity by increasing the network traffic throughput without installing additional devices.

Secure

Eliminate potential gaps in security infrastructure with the Xirrus XR-4820 integrated firewall, threat sensor and spectrum analyzer providing comprehensive security without the need for additional equipment.

Xirrus XR-4820 Wireless Array - Technical Specifications

RF Management

• In-band per IAP Spectrum Analysis
• Dynamic channel configuration
• Dynamic cell size configuration
• Monitor radio for threat assessment and mitigation
• Wired and wireless packet captures (including all 802.11 headers)
• Wired and Wireless RMON / Packet Captures
• Radio assurance for radio self test and healing
• RF monitor

High Availability

• Supports hot stand-by Array for mission critical area

Environmentally Friendly

• Supports ability to turn off radios based on schedule configuration

Wireless Protocol

• IEEE 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11

Wired Protocols

• IEEE 802.3 10BASE-T , IEEE 802.3.u 100BASE-TX , 1000BASE-T, 802.3ab 1000BASE-T
• IEEE 802.1q - VLAN tagging
• IEEE 802.1AX - Link aggregation
• IEEE 802.1d - Spanning tree
• IEEE 802.1p - Layer 2 traffic prioritization

RFC Support

• RFC 768 UDP
• RFC 791 IP
• RFC 2460 IPV6 (Bridging only)
• RFC 792 ICMP
• RFC 793 TCP
• RFC 826 ARP
• RFC 1122 Requirements for internet hosts - communication layers
• RFC 1542 BOOTP
• RFC 2131 DHC

Security

• WPA
• IEEE 802.11i WPA2, RSN
• RFC 1321 MD5 Message-digest algorithm
• RFC 2246 TLS protocol version 1.0
• RFC 3280 Internet X.509 PKI certificate and CRL profile
• RFC 4347 Datagram transport layer security
• RFC 4346 TLS protocol version 1

Encryption Type

• Open, WEP, TKIP-MIC: RC4 40, 104 and 128 bits
• SSL and TLS: RC4 128-bit and RDA 1024 and 2048 bit

Authentication

• IEEE 802.1x
• RFC 2548 Microsoft vendor-specific RADIUS attributes
• RFC 2716 PPP EAP-TLS
• RFC 2865 RADIUS Authentication
• RFC 2866 RADIUS Accounting
• RFC 2867 Tunnel Accounting
• RFC 2869 RADIUS Extensions
• RFC 3576 Dynamic Authorizations extensions to RADIUS
• RFC 3579 RADIUS Support for EAP
• RFC 3748 EAP-PEAP
• RFC 5216 EAP-TLS
• RFC 5281 EAP-TTLS
• RFC 2284 EAP-GTC
• RFC 4186 EAP-SIM
• RFC 3748 Leap Passthrough
• RFC 3748 Extensible Authentication Protocol
• Web Page Authentication
  • WPR, Landing Page, Redirect
  • Support for Internal WPR, Landing Page and Authentication
  • Support for External WPR, Landing Page and Authentication

Regulatory Compliance

• CE Mark
• Safety:
  • UL 60950-1:2003
  • EN 60950:2000
  • EMI and susceptibility (Class A)
  • U.S.:FCC Part 15.107 and 15.109
  • Canada: ICES-003
  • Japan: VCCI
  • Europe: EN 55022, EN 5502

Physical Specification

s

• Dimensions (WxDxH): 2.5 x 12.25 x 12.25 in.
• Weight: 2.6lbs

Environmental Specification

• Operating Temperature: 0-55C, 0-90% humidity, non-condensing

Channel Support 2.4GHz

• 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Channel Support 5GHz

• UNI I - Non-DFS channels
• 36 40 44 48
• UNI I DFS channels
• 52 56 60 64
• UNI II DFS channels
• 100 104 108 112 116 120 124 128 132 136 140
• UNI III Non-DFS channels
• 149 153 157 161 165

Xirrus XR-4000 Comparison

Product	XR-4420	XR-4430	XR-4820	XR-4830
Chassis Size	13”	13”	13”	13”
Total Radio Slots	8	8	8	8
Populated 802.11n Radios	4	4	8	8
Radio Type	300Mbps Multi-State (2.4GHz and 5GHz)	450Mbps Multi-State (2.4GHz and 5GHz)	300Mbps Multi-State (2.4GHz and 5GHz)	450Mbps Multi-State (2.4GHz and 5GHz)
Maximum Wi-Fi Bandwidth	1.2Gbps	1.8Gbps	2.4Gbps	3.6Gbps
Dedicated Wi-Fi Threat Sensor	Yes	Yes	Yes	Yes
Integrated Antennas	8	12	16	24
Max Wi-Fi Backhaul	1.35Gbps	1.35Gbps	1.35Gbps	1.35Gbps
Integrated Wi-Fi Switch Ports	8	8	8	8
Gigabit Ethernet Uplink Ports	2	2	2	2
Maximum Associated Users	960	960	1920	1920
Radio Interface	2.5Gbps PCI-Express	2.5Gbps PCI-Express	2.5Gbps PCI-Express	2.5Gbps PCI-Express
Maximum Power Consumption	33W	38W	45W	50W
