40 Wifi Chuyên Dụng Aruba AP 345 (US/RW) Unified
11,900,000₫
Wifi Chuyên Dụng Aruba AP 535 (RW) Unified AP
19,500,000₫
Wifi Chuyên Dụng Aruba AP 515 (RW) Unified AP
Giá trên chưa bao gồm VAT
Mô tả ngắn đang cập nhật.
ARUBA VIỆT NAM - TỔNG KHO phân phối thiết bị WIFI ARUBA chính hãng.
Với bề dày 10 năm kinh doanh sản phẩm thiết bị mạng chuyên dụng tại Việt Nam, chúng tôi cam kết tự tin khẳng định cung cấp sản phẩm Wifi: ARUBA, DELL,, CISCO, RUCKUS, XIRRUS...Nas Buffalo, Switch Buffalo ... cho quý khách với tiêu chí 3 NHẤT :
BẢO HÀNH LÂU NHẤT - CHẤT LƯỢNG TỐT NHẤT - DỊCH VỤ HOÀN HẢO NHẤT. Aruba Việt Nam cam kết cung cấp sản phẩm chất lượng tốt nhất cho Qúy khách với chính sách : Bảo hành 5 NĂM 1 ĐỔI 1 - Dùng thử 7 ngày miễn phí - Dịch vụ Giao hàng, Lắp đặt, Bảo hành bảo trì tận nơi MIỄN PHÍ.
Thương mại liên hệ để có giá tốt nhất :
0981.546.721

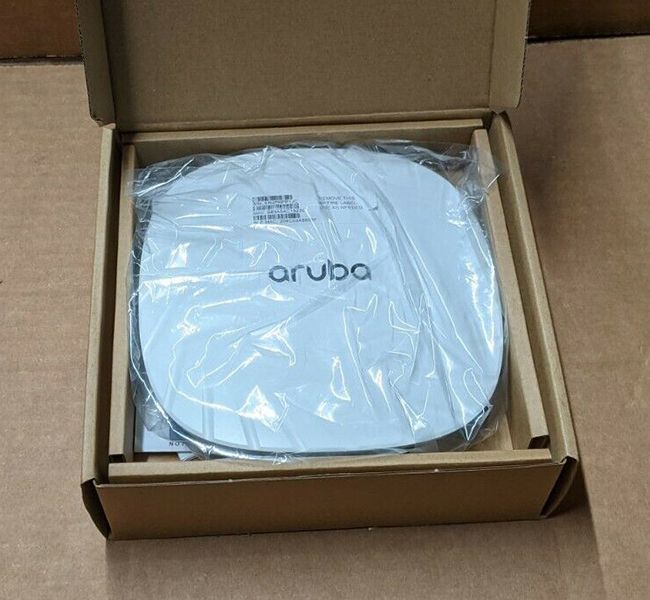

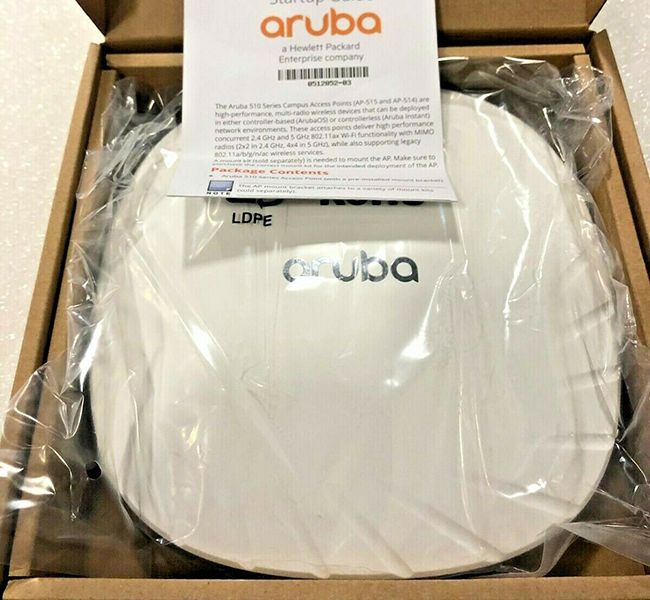

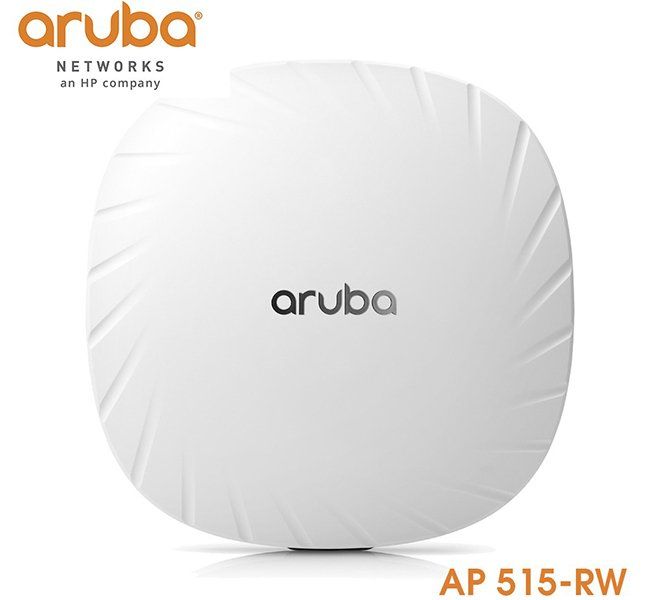

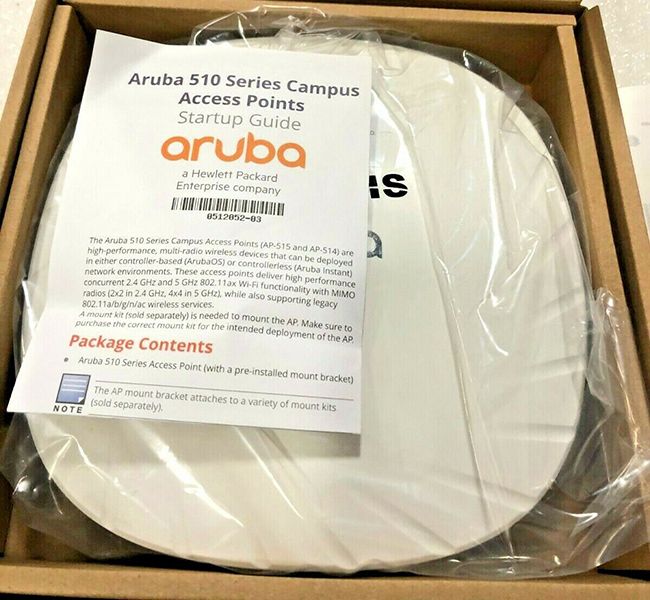

Thiết bị phát sóng wifi siêu chịu tải Aruba AP-515-RW
Hỗ trợ 2 radios và 2 băng tần 2.4Ghz và 5 Ghz tốc độ kết nối lên đến 5.375Gbps. Chuẩn kết nối wifi Ax mới nhất.
Sử dụng công nghệ antenMU- MIMO 4 X 4:4+2x2:2, hỗ trợ tính năng Beam-forming.
Khả năng chịu tải toàn bộ hệ thống từ hơn 150 clients mỗi Radio
Cấu hình qua Virtual controller hoặc quản lý tập trung bằng Aruba Controller theo dõi client, AP, bằng giao diện trực quan, chi tiết...
Thích hợp sử dụng cho Khách sạn, Nhà hàng, Resort, Công ty...
Thông số kỹ thuật :
Số radio: 2 - Công nghệ MU- MIMO 4X4:4+2x2:2
Hỗ trợ băng tầng: Dual concurrent 2,4Ghz & 5Ghz
Chuẩn kết nối: 802.11a/b/g/n/ac wave 2/ax
Tốc độ truy cập: 5,375 Mbps
Số lượng SSIDs: 16
Công suất phát 2.4 gHz/5 gHz: 24 dBm
Số cổng kết nối : 2 x Gigabit Smart Rate 2,5GBps
Khả năng chịu tải : 100-512 users
Nguồn:12V DC 3,0A và POE
Trọng lượng : 1,2KG
* Bảo Hành 1 đổi 1 trong vòng 60 Tháng
ECHNICAL SPECIFICATIONS | |
| AP type | Indoor, dual radio, 5GHz 802.11ax 4x4 MIMO and 2.4GHz 802.11ax 2x2 MIMO |
| Radio 5Ghz | - Four spatial stream Single User (SU) MIMO for up to 4.8Gbps wireless data rate to inpidual 4SS HE160 802.11ax client devices (max) - Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate to inpidual 2SS HE80 802.11ax client devices (typical) - Four spatial stream Multi User (MU) MIMO for up to 4.8Gbps wireless data rate to up to four 1SS or two 2SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (max) - Four spatial stream Multi User (MU) MIMO for up to 2.4Gbps wireless data rate to up to four 1SS or two 2SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical) |
| Radio 2.4Ghz | - Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate to inpidual 2SS HE40 802.11ax client devices or to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (max) - Two spatial stream Single User (SU) MIMO for up to 287Mbps wireless data rate to inpidual 2SS HE20 802.11ax client devices or to two 1SS HE20 802.11ax DL-MU-MIMO capable client devices simultaneously (typical) |
| Maximum number of associated client devices | Up to 512 associated client devices per radio |
| Maximum number of BSSIDs | 16 BSSIDs per radio |
| Supported frequency bands (country-specific restrictions apply) | - 2.400 to 2.4835 GHz - 5.150 to 5.250 GHz - 5.250 to 5.350 GHz - 5.470 to 5.725 GHz - 5.725 to 5.850 GHz |
| Available channels | Dependent on configured regulatory domain |
| Supported radio technologies | - 802.11b: Direct-sequence spread-spectrum (DSSS) - 802.11a/g/n/ac: Orthogonal frequency-pision multiplexing (OFDM) - 802.11ax: Orthogonal frequency-pision multiple access (OFDMA) with up to 16 resource units (for an 80MHz channel) |
| Supported modulation types | - 802.11b: BPSK, QPSK, CCK - 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension) - 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension) - 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| 802.11n high-throughput (HT) support | HT20/40 |
| 802.11ac very high throughput (VHT) support: | VHT20/40/80/160 |
| 802.11ax high efficiency (HE) support: | HE20/40/80/160 |
| Supported data rates (Mbps): | - 802.11b: 1, 2, 5.5, 11 - 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 - 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) - 802.11n (5GHz): 6.5 to 600 (MCS0 to MVC31, HT20 to HT40) - 802.11ac: 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160) - 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) - 802.11ax (5GHz): 3.6 to 4,803 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160) |
| 802.11n/ac packet aggregation: | A-MPDU, A-MSDU |
| Transmit power | Configurable in increments of 0.5 dBm |
| Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements): | - 2.4 GHz band: +21 dBm (18dBm per chain) - 5 GHz band: +24 dBm (18 dBm per chain) |
WI-FI ANTENNAS | |
| Antenna | Four integrated dual-band downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 4.2dBi in 2.4GHz and 7.5dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. - Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per-antenna pattern is 3.8dBi in 2.4GHz and 4.6dBi in 5GHz. |
OTHER INTERFACES | |
| Interfaces | • E0: HPE SmartRate port (RJ-45, maximum negotiated speed 2.5Gbps) - Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX - 2.5Gbps speed complies with NBase-T and 802.3bz specifications - PoE-PD: 48Vdc (nominal) 802.3af/at/bt (class 3 or higher) - 802.3az Energy Efficient Ethernet (EEE) • E1: 10/100/1000BASE-T Ethernet network interface (RJ-45) - Auto-sensing link speed and MDI/MDX - 802.3az Energy Efficient Ethernet (EEE) |
| DC power interface | 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length |
| USB 2.0 host interface (Type A connector) | Capable of sourcing up to 1A / 5W to an attached device |
| Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio | - Bluetooth 5: up to 8dBm transmit power (class 1) and -95dBm receive sensitivity - Zigbee: up to 8dBm transmit power and -97dBm receive sensitivity - Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.5dBi |
| Visual indictors (two multi-color LEDs): | For System and Radio status |
| Reset button: | Factory reset, LED mode control (normal/off) |
| Serial console interface | Proprietary, micro-B USB physical jack |
| Security slot | Kensington security slot |
FLEXIBLE OPERATION AND MANAGEMENT | |
| Controller-less (Instant) mode | In controllerless mode, one AP serves as a virtual controller for the entire network |
| Mobility Controller mode | For optimized network performance, roaming and security, APs tunnel all traffic to a mobility controller for centrally managed traffic forwarding and segmentation, data encryption, and policy enforcement. |
| Management options | Aruba Central (cloud-managed) or Aruba AirWave |
POWER SOURCES AND POWER CONSUMPTION | |
| Power Sources: The AP supports direct DC power and Power over Ethernet | - The AP supports direct DC power and Power over Ethernet |
| Maximum (worst-case) power consumption (without / with a USB device attached): | - DC powered: 16.0W - PoE powered (802.3af, IPM enabled): 13.5W - PoE powered (802.3at/bt): 20.8W - All numbers above are without an external USB device connected. When sourcing the full 5W power budget to such a device, the incremental (worst-case) power consumption for the AP is up to 5.7W (PoE powered) or 5.5W (DC powered). |
| Maximum (worst-case) power consumption in idle mode: | 12.6W (PoE) or 9.7W (DC). |
| Maximum (worst-case) power consumption in deep-sleep mode: | 5.9W (PoE) or 1.5W (DC). |
MECHANICAL SPECIFICATIONS | |
| Dimensions/weight | - 200mm (W) x 200mm (D) x 46mm (H)/ 7.9” (W) x 7.9” (D) x 1.8” (H) - 810g/28.5oz |
| Dimensions/weight (shipping): | - 230mm (W) x 220mm (D) x 72mm (H)/ 9.1” (W) x 8.7” (D) x 2.8” (H) - 1010g/35.5oz |

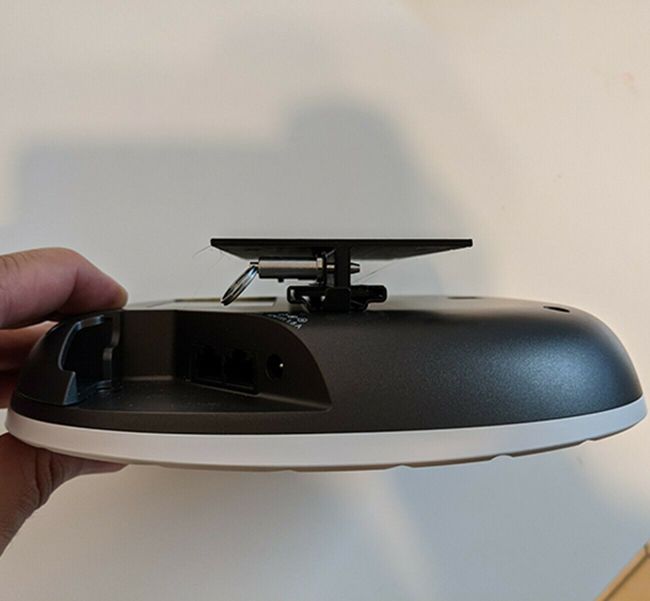

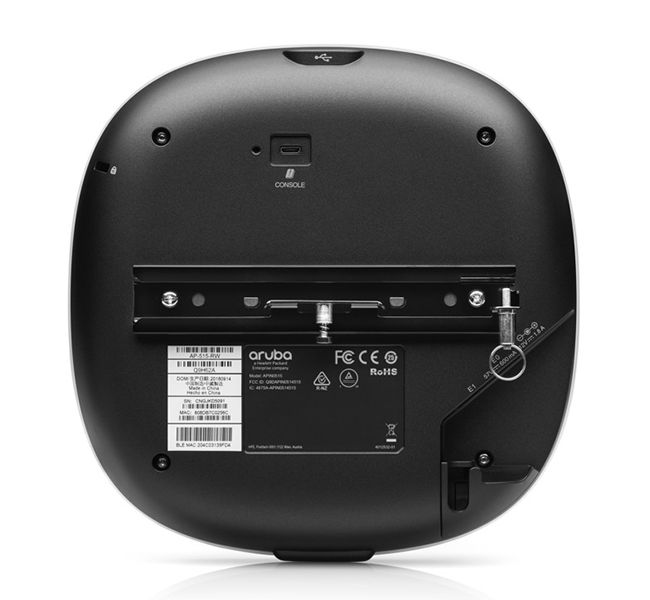

| Mounting details | A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately); see the 500 Series Ordering Guide for details. |
ENVIRONMENTAL SPECIFICATIONS | |
| Operating conditions | • Operating conditions - Temperature: 0C to +50C/+32F to +122F - Humidity: 5% to 93% non-condensing - AP is plenum rated for use in air-handling spaces - ETS 300 019 class 3.2 environments |
| Storage and transportation conditions | - Temperature: -40C to +70C/-40F to +158F - Humidity: 5% to 93% non-condensing - ETS 300 019 classes 1.2 and 2.3 environments |
RELIABILITY | |
| Mean Time Between Failure (MTBF): | 560,000hrs (64yrs) at +25C operating temperature. |
MINIMUM OPERATING SYSTEM SOFTWARE VERSIONS | |
| ArubaOS | 8.4.0.0, 8.6.0.0 |
| Minimum Software Release | 8.4.0.0, 8.6.0.0 |
