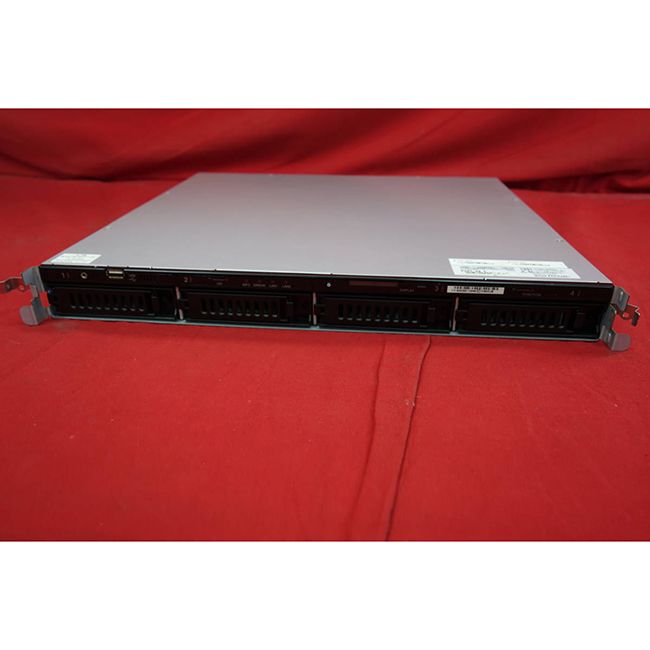

NAS Buffalo TeraStation WS5400R

Hardware System

CPU Type

Intel Atom D2700 (Dual Core)

CPU Speed

2.13GHz

RAM

DDR3 4GB

Drive Interface

SATA 3, 3 Gb/s

Installed OS

Windows Storage Server 2012 Standard

Included user licenses

Unlimited

Size of Workgroup

150

Internal Hard Drives

Number of Bays

4

Total Capacity

8TB, 16TB

Supported HDD Capacities

2TB, 4TB

LAN Interface

Connector Type

RJ-45

LAN Ports

2

Max Transmission Rate*

10/100/1000 Mbps

USB Interface

Connector Type

USB Type A

USB 2.0 Ports

2

USB 3.0 Ports

3

Max Transmission Rate*

Max: 480 Mb/s, Max: 5 Gb/s

Serial Port

Connector Type

D-SUB 9pin

Number of Ports

1

Other

Client OS

Windows 8.1, Windows 8, Windows 7, Windows Vista, Windows XP, Windows XP including MCE2005 / MCE2004, Windows 2000, Windows Server 2000, Windows 2003/R2, Windows 2008/R2, Mac OS 10.4 - 10.9

Support

Standard Warranty 3 years, 24 hour HDD exchange, Technical Support Hotline

Dimensions

429.5 x 44.3 x 430mm

Weight

Approx. 8.5Kg

Operating Environment

5-35°C, 20-80% (non-condensing)

Power Supply

Internal AC 100-240V Universal, 50/60Hz

Power Consumption (Max.)

96 Watts

Power Management System

Yes

Software System

Supported RAID Levels

JBOD, Spanning, 0, 1, 5

Hot Swap

Yes

Hot Spare

Yes

DFS

DFS name space support

User Quota

Space limitation for users/groups

iSCSI

iSCSI Target, iSCSI Initiator

Protocol Support

Networking

TCP/IP, UDP

File Sharing

SMB/CIFS, AFP, FTP/FTPS, SFTP, HTTP/HTTPS, NFS

Protocol Support

TCP/IP, CIFS/SMB, DFS, AFP, HTTP/HTTPS, FTP/SFTP, NFS, LDAP, NTP, SNMP, BitTorrent

Other

Disk quota, User quota, Wake on LAN, DLNA Media Server, Print Server Support

Active Directory support

Yes

Active Directory Integration

LDAP, Kerberos

Active Directory users

Unlimited

Management

HTTP, HTTPS

Backup

Realtime Backup

Folder Replication, Failover

Replication

Yes

Apple Time Machine®

Yes

Backup Software

10 licenses NovaBACKUP BE

S3 Amazon cloud support

Use Amazon professional cloud services

Remote Access

Web UI

via HTTP/HTTPS

FTP Server

via FTP/SFTP

WebAccess

Yes

Product Part Numbers

Product Code

WS5400R0804-EU - 8TB

-

WS5400R1604-EU - 16TB

Note

1TB = 1, 000, 000, 000, 000Bytes. Actual data throughput will vary depending upon environment factor.
