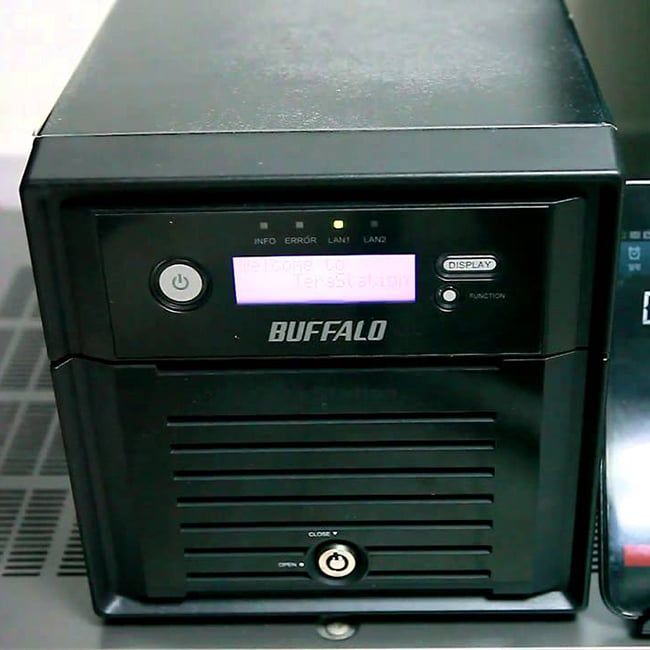

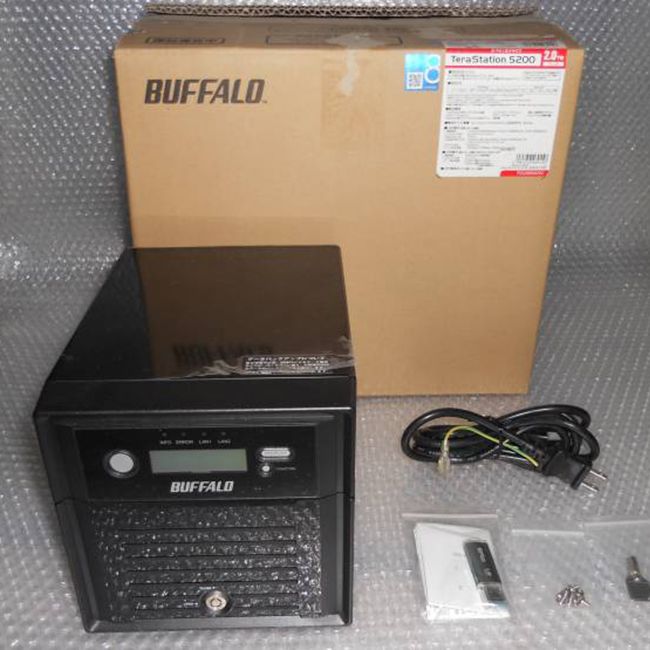

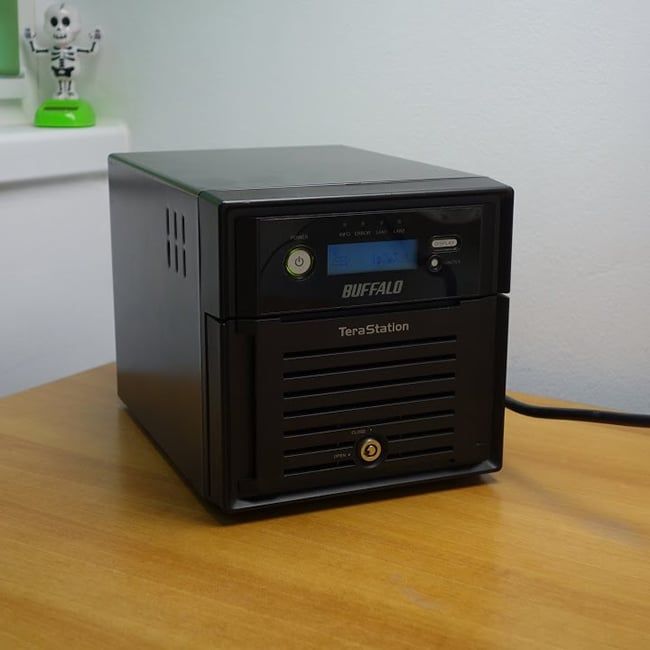

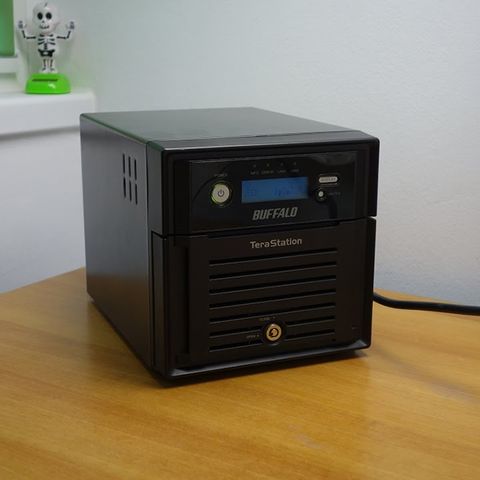

NAS Buffalo TeraStation TS5200D

Hardware System

CPU Type

Intel Atom D2550 (Dual Core)

CPU Speed

1.86GHz

RAM

DDR3 2GB

Drive Interface

SATA 3Gb/s

Installed OS

Linux

Size of Workgroup

50

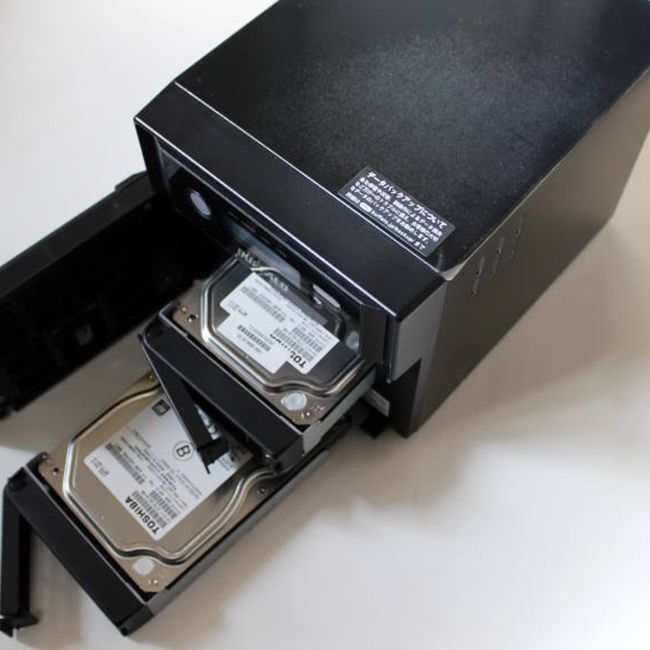

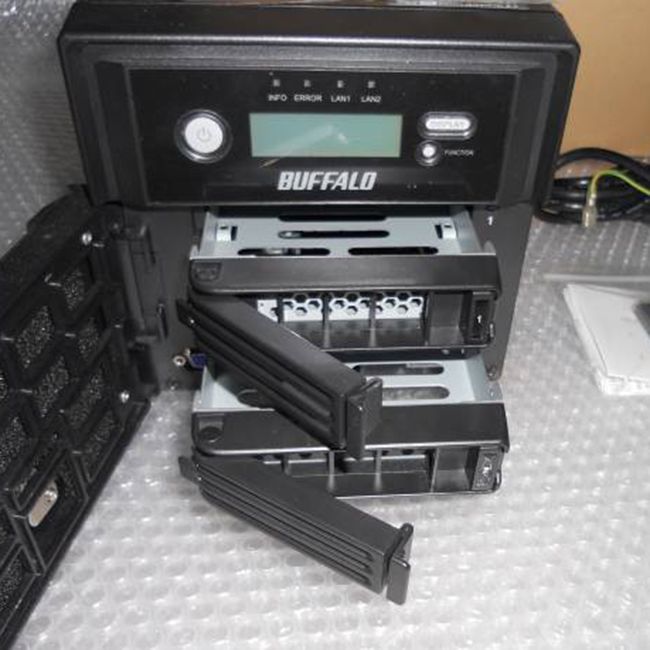

Internal Hard Drives

Number of Bays

2

Total Capacity

2TB, 4TB, 6TB, 8TB

Supported HDD Capacities

1TB, 2TB, 3TB, 4TB

LAN Interface

Connector Type

RJ-45

LAN Ports

2

Max Transmission Rate

10/100/1000 Mbps

USB Interface

Connector Type

USB Type A

USB 2.0 Ports

2

USB 3.0 Ports

2

Max Transmission Rate

Max: 480 Mb/s, Max: 5 Gb/s

Serial Port

Connector Type

D-SUB 9pin

Number of Ports

1

Other

Client OS

Windows 8.1, Windows 8, Windows 7, Windows Vista, Windows XP, Windows XP including MCE2005 / MCE2004, Windows 2000, Windows Server 2000, Windows 2003/R2, Windows 2008/R2, Mac OS 10.4 - 10.9

Support

Standard Warranty 3 years, 24 hour HDD exchange, Technical Support Hotline

Dimensions

231x170x216mm

Weight

Approx. 8.0Kg

Operating Environment

5-35°C, 20-80% (non-condensing)

Power Supply

Internal AC 100-240V Universal, 50/60Hz

Power Consumption (Max.)

47 Watts

Power Management System

Yes

Software System

Supported RAID Levels

JBOD, 0, 1

Hot Swap

Yes

Hot Spare

Yes

Video Surveillance Package

One free camera license, more can be added, manages storage pool and camera pool, supports cameras from 184 vendors and manual settings for RTSP

DFS

DFS Namaspace Support

User Quota

Space limitation for users/groups

iSCSI

iSCSI Target

Protocol Support

Networking

TCP/IP, UDP

File Sharing

SMB/CIFS, AFP, FTP/FTPS, SFTP, HTTP/HTTPS, NFS

Protocol Support

TCP/IP, CIFS/SMB, DFS, AFP, HTTP/HTTPS, FTP/SFTP, NFS, LDAP, NTP, SNMP, RTSP, BitTorrent

Other

IP Camera Support, Disk quota, User quota, Wake on LAN, DLNA Media Server, Print Server Support

Active Directory users

1000

Active Directory Integration

LDAP, Kerberos

Active Directory support

Yes

Management

HTTP, HTTPS

Time Synchronization

NTP

Camera

RTSP

Backup

Failover

Failover solution with other Buffalo NAS devices

Realtime Backup

Folder Replication, Failover

Replication

Yes

Apple Time Machine®

Yes

Backup Software

10 licenses NovaBACKUP BE

Cloud Support

Use Amazon professional cloud services

Remote Access

Web UI

via HTTP/HTTPS

FTP Server

via FTP/SFTP

WebAccess

Yes

FTP/SFTP

Yes
